Armourflow™ Panel Drain
Armourflowâ„¢ is an advanced geocomposite drainage board used to protect waterproofing coatings and efficiently transport water into the drainage systems at the base of retaining walls to prevent hydrostatic pressure build up.

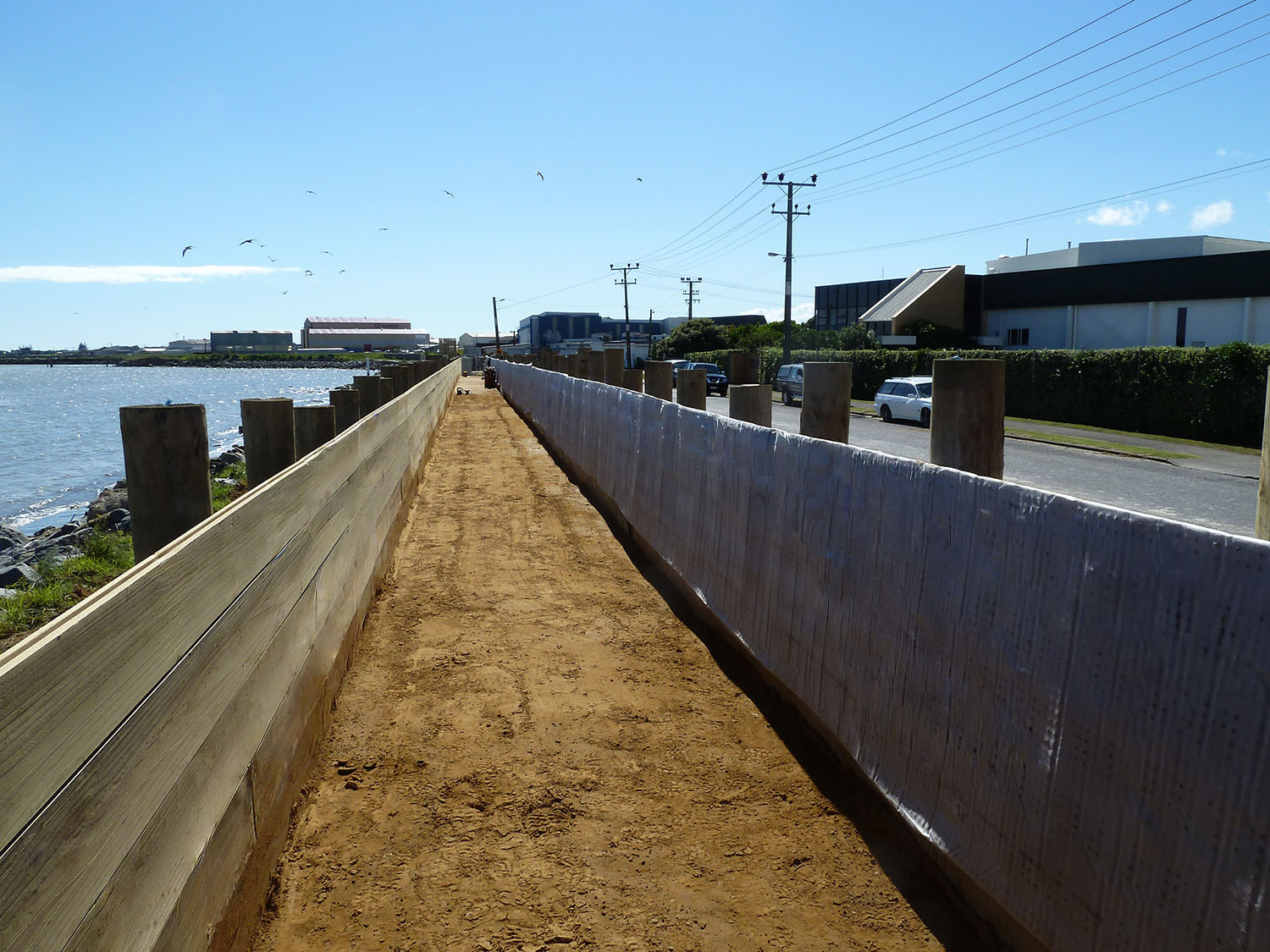

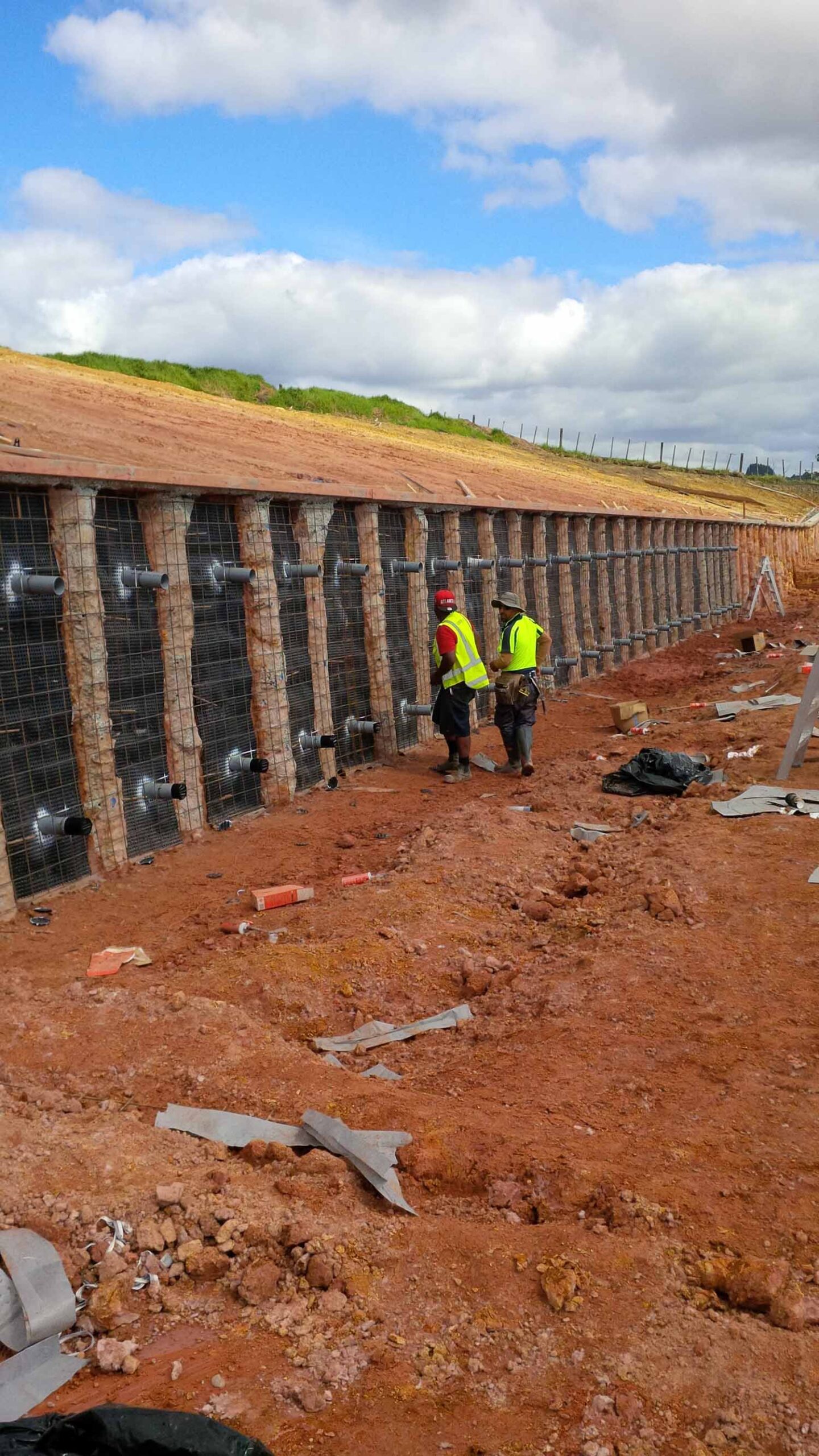

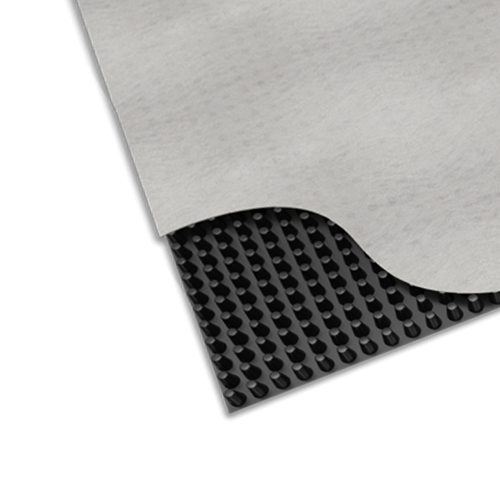

Armourflow is comprised of a dimpled high crush resistant HDPE core with a highly permeable geotextile filter bonded onto one side to provide a drainage sheet. It is commonly used behind basement and retaining walls to collect and filter water ingressing from backfill soils. Armourflow also protects the waterproofing liner from damage when the backfill soil is being placed.
Due to Armourflow’s lightweight structure, it can often be used to replace conventional mineral drainage aggregate, saving time and money. It is also quick and easy to install and doesn’t require heavy machinery.
Frequently Asked Questions
What is Armourflow?
A geocomposite drainage board, which is a permeable geotextile bonded to a dimpled sheet.
What sizes does it come in?
One size – 1.1m x 25m.
What does Armourflow do?
- Filters water and allows free drainage.

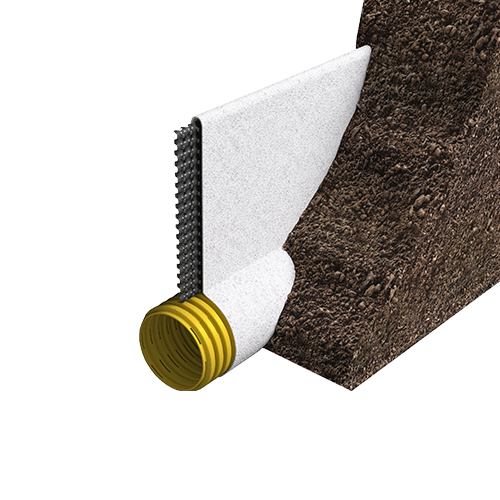

- Collects water from the surrounding soil and channels it away ensuring no hydrostatic loads are built up behind the retaining or basement wall.
Are there any other uses for Armourflow?
Armourflow can also be used as root barrier.
Benefits & Features
- Additional protection to waterproofing membranes
- Horizontal drainage of rooftops and planter boxes
- Protects waterproof coatings from soil and rock damage
- Reduces the need for expensive drainage aggregate
Specifications
Code
Product
Size
76801
Armourflow 12
1.1m x 25m
